# Port Board Replacement

## Before you begin

This guide will take you through replacing the port board in NOVA. Before beginning this guide you should have been in contact with our support team and received replacement parts.

{% hint style="warning" %}
**Safety first!** Before starting any repair, take a moment to review the [safety information in your user manual.](https://docs.voltera.io/docs/nova/downloads/nova-user-manual) An online version of the guidelines can also be found [here.](https://docs.voltera.io/docs/nova/getting-started/safety-guidelines)
{% endhint %}

As you work through this guide please reach out to our email <support@voltera.io> or through the chat if you run into any issues or have any questions. We are more than happy to assist you virtually with this repair.&#x20;

{% hint style="success" %}
**When in doubt, reach out!**
{% endhint %}

#### Estimated Repair Time:

* 30 minutes

#### Tools you will need:

* Screwdriver
  * T10 Torx
  * T20 Torx
* 1 small 4" zip tie

#### Parts you have received from Voltera:

* Port board PCB

## Replace the Port Board

{% stepper %}
{% step %}

### Disconnect NOVA from power

Ensure that NOVA is turned off with the power button and then unplug the power cable.

<figure><img src="https://lh7-rt.googleusercontent.com/slidesz/AGV_vUfemsBggVvQ8Ff_ZVNRTmpkd158WPpBQ0B7CNAqRBrfkR_C0BAvXNGywtz5_gZki5GWEYspOsjUTN3nnPTMo00ktidX4Qc5NInz_X71B5vyUwBeWMLrLROkIDL03cMfzRGM1mBhnA=nw?key=FyXWpw1YygHPFuhH-bIybD7L" alt="" width="375"><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Remove the backplate

With a T20 Torx bit remove the 6 screws (2 on the back side, 4 on the bottom of the panel) securing the back panel. Once the screws are out you can pull the back panel out by tilting it up slightly and then pulling away from the machine.

<figure><img src="https://lh7-rt.googleusercontent.com/slidesz/AGV_vUeO6-HkfCE3zIxQr-_WtjKVnlmS5M-R3yajPiDXrqERn6Ut6NxOmw_3whIbhy_ktuR-K0_s6sRbs48nIQKqciC35oejbpM3Z8SMHcuKrdYPWPtRFmWvO7IjjV6ltlKWcY9xXkMs0g=nw?key=FyXWpw1YygHPFuhH-bIybD7L" alt=""><figcaption></figcaption></figure>

{% embed url="<https://files.gitbook.com/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FYKzrL5Rz2l0ufpEa39Yc%2Fuploads%2FggfE1jiHZSVl0wYG2Ysu%2FIMG_6192.mp4?alt=media&token=ecce98f3-10a0-468e-bf24-b9ce93116546>" %}
{% endstep %}

{% step %}

### Remove the port board

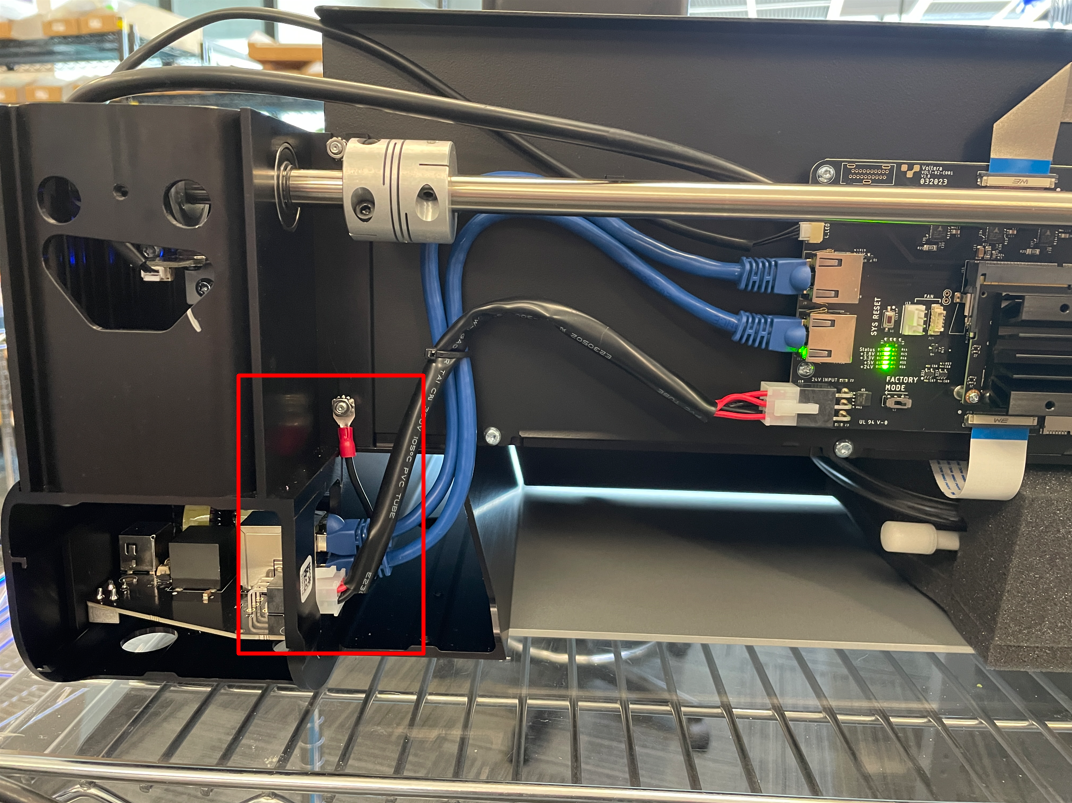

Start by unplugging the cables (2 ethernet, 1 power harness) that run from the port board to the main control board.

<figure><img src="https://content.gitbook.com/content/Ug3mbo6FhPbGOGvlUwTu/blobs/PtPCHV0286SaLfQAl1F3/image.png" alt=""><figcaption></figcaption></figure>

Remove the two screws holding the port board in place on the side of NOVA with a T10 Torx bit.

<figure><img src="https://lh7-rt.googleusercontent.com/slidesz/AGV_vUc9D51Dv7Rc1yjb0n6bfEAKS-0FWwW8LGzPCV6_Xa7dDYRaH-y68DMJXzSLg0Ox4Pnuf71qnoS1VuBWWrpVN9QId_tc-mYNtLpOwoA8Zt5DJdse-A7z5Cd7QR_-kBmXWq_heUVdrkcLMjYeO7KVH4mXEGOEUi3f=nw?key=op4buN3kxecrDah3CD-bhw" alt="" width="563"><figcaption></figcaption></figure>

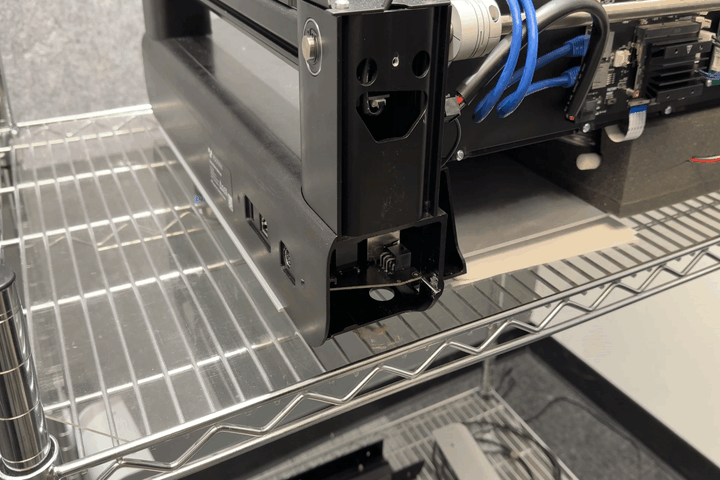

Slide the port board out the back of NOVA while applying pressure inwards to keep the faceplate from scratching.

<figure><img src="https://907254262-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUg3mbo6FhPbGOGvlUwTu%2Fuploads%2FRXdeZ3AcdaFkEipYyypR%2FRemove%20port%20board.gif?alt=media&#x26;token=aa6d3708-97e2-4c69-aa7a-689905a94da8" alt=""><figcaption></figcaption></figure>

{% hint style="warning" %}

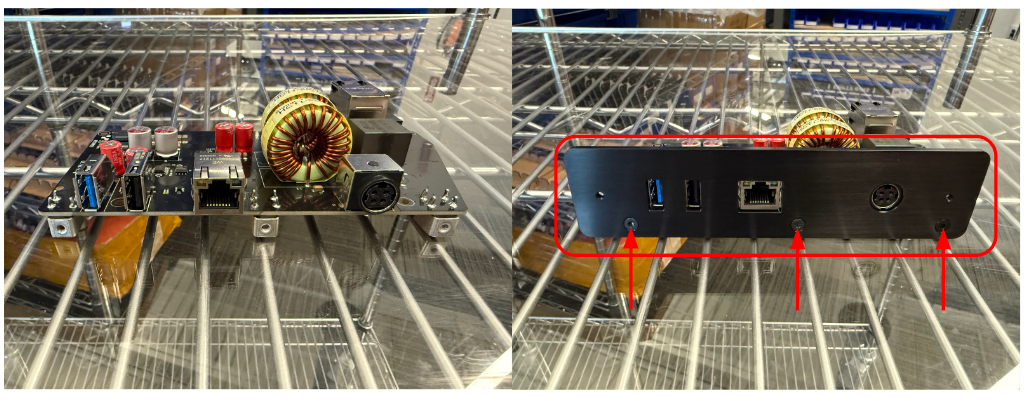

If the replacement port board did not come with a face plate, transfer over the faceplate from the old port board by removing the three screws.
{% endhint %}

<figure><img src="https://content.gitbook.com/content/Ug3mbo6FhPbGOGvlUwTu/blobs/Zrp9yukop00WUHbwJdtf/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Install the new port board

Slide the new port board in the same way keeping pressure applied inward to avoid scratching the faceplate and fasten the two screws to hold it in place.

<figure><img src="https://907254262-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUg3mbo6FhPbGOGvlUwTu%2Fuploads%2FcQr4jRL5vwWg5wo7v9jh%2FInstall%20port%20board.gif?alt=media&#x26;token=abb34605-f5e3-4275-a1b8-77e2b7c35134" alt=""><figcaption></figcaption></figure>

<figure><img src="https://lh7-rt.googleusercontent.com/slidesz/AGV_vUc9D51Dv7Rc1yjb0n6bfEAKS-0FWwW8LGzPCV6_Xa7dDYRaH-y68DMJXzSLg0Ox4Pnuf71qnoS1VuBWWrpVN9QId_tc-mYNtLpOwoA8Zt5DJdse-A7z5Cd7QR_-kBmXWq_heUVdrkcLMjYeO7KVH4mXEGOEUi3f=nw?key=op4buN3kxecrDah3CD-bhw" alt="" width="563"><figcaption></figcaption></figure>

Plug in the cables (2 ethernet, 1 power harness) that run from the port board to the main control board. If you removed the grounding mount reattach it with the 7mm socket.

<figure><img src="https://content.gitbook.com/content/Ug3mbo6FhPbGOGvlUwTu/blobs/PtPCHV0286SaLfQAl1F3/image.png" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Reattach the backplate <a href="#reattach-the-backplate" id="reattach-the-backplate"></a>

Put the back plate back into place and with a T20 Torx bit secure the 6 screws (2 on the back side, 4 on the bottom of the panel).

<figure><img src="https://docs.voltera.io/~gitbook/image?url=https%3A%2F%2F3113512132-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252FYKzrL5Rz2l0ufpEa39Yc%252Fuploads%252FkQ0is0WUOFQzB2quDWWC%252Fimage.png%3Falt%3Dmedia%26token%3Dc7f5ead5-b2a7-4c5d-be89-1c66e50802c1&#x26;width=768&#x26;dpr=4&#x26;quality=100&#x26;sign=34dd8ced&#x26;sv=2" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

### Turn NOVA back on! <a href="#turn-nova-back-on" id="turn-nova-back-on"></a>

You can now plug NOVA back in and turn it on using the power button.
{% endstep %}
{% endstepper %}

## Repair Complete!

Congratulations, you have successfully replaced NOVAs port board!

Please reach back out to our support team through email (<support@voltera.io>) or the chat to let them know everything went well. We will arrange a shipping label to return the old parts back to us for further testing.
