Dispenser Motor Mount Replacement

Repair guides are to be used when directed by Voltera Support only!

Performing these without Voltera Support's direction could be the wrong resolution path for your issue and could cause damage to your machine. If you haven't been in contact with Voltera Support about your issue please email [email protected] or reach out in the chat before proceeding.

Before you begin

This guide will take you through replacing the motor mount on your NOVA smart dispenser. Before beginning this guide you should have been in contact with our support team and received replacement parts.

Safety first! Before starting any repair, take a moment to review the safety information in your user manual. An online version of the guidelines can also be found here.

As you work through this guide please reach out to our email [email protected] or through the chat if you run into any issues or have any questions. We are more than happy to assist you virtually with this repair.

When in doubt, reach out!

Estimated Repair Time:

• 15 minutes

Tools you will need:

• T8 Torx Screwdriver

Parts you have received from Voltera:

• Motor mount

Replace the motor mount

1

Remove the dispenser motor

Separate the dispenser motor from the dispenser body.

2

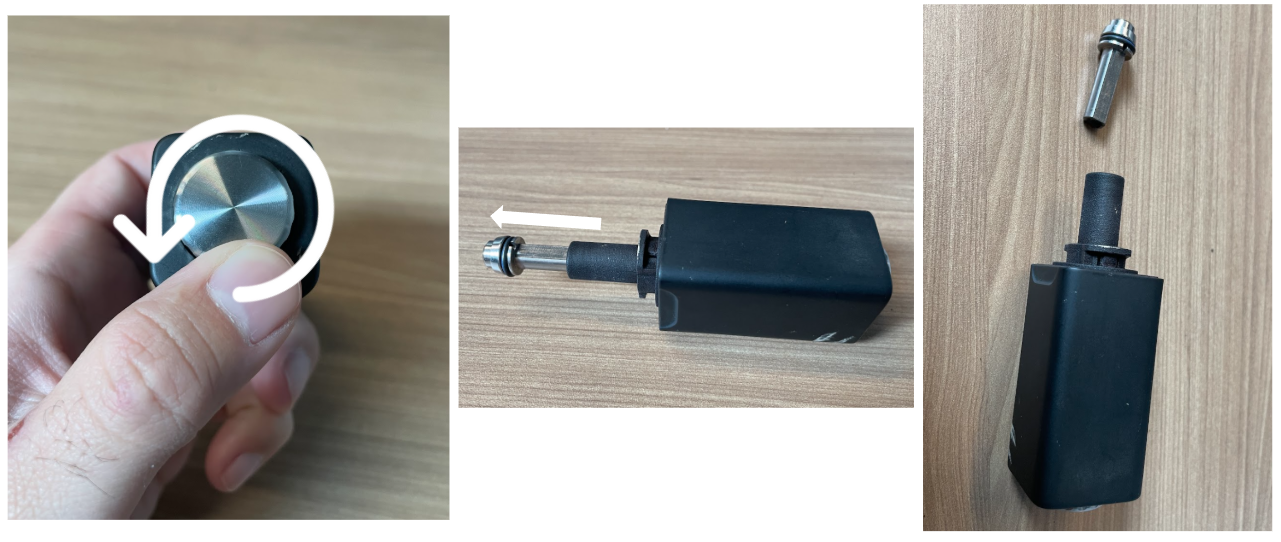

Remove the dispenser plunger

Manually rotate the motor counterclockwise with your thumb to push out the actuator until it is free from the threaded rod.

3

Remove the motor mount

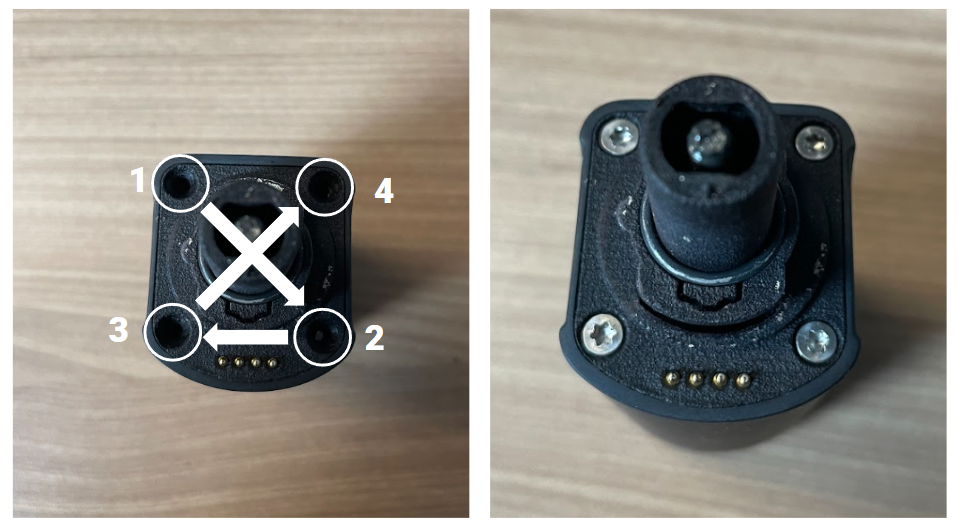

Place the motor facing upwards and remove the 4 screws holding the motor mount in place using the T8 Torx screwdriver.

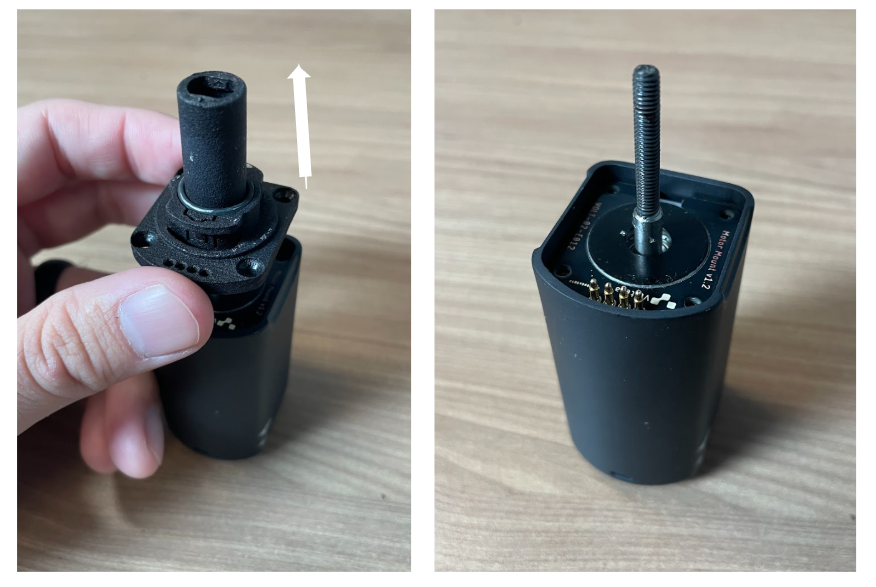

Gently lift the motor mount off of the motor assembly.

4

Install the new motor mount

Make sure the new motor mount has the o-ring installed at the base of the shaft.

Gently place the new motor mount onto the motor assembly and tighten the screws down in a criss-cross pattern.

5

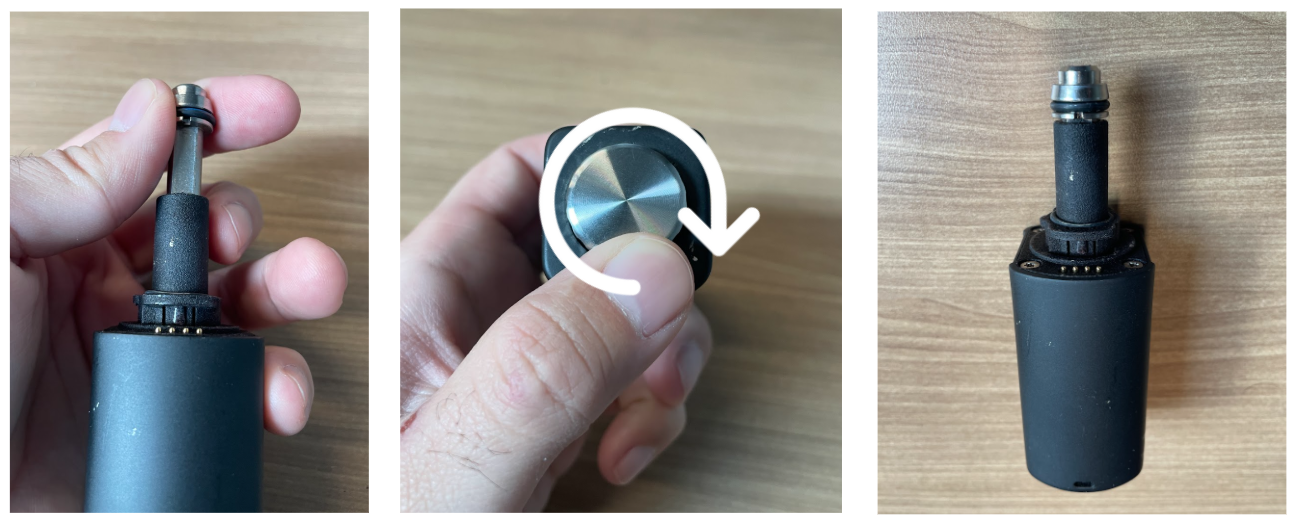

Attach the dispenser plunger

Holding the actuator onto the threads with one hand, use the other hand to manually rotate the motor in the clockwise direction to fully seat the actuator.

Repair Complete!

Congratulations, you have successfully replaced the motor mount on NOVAs smart dispenser!

Please reach back out to our support team through email ([email protected]) or the chat to let them know everything went well.
